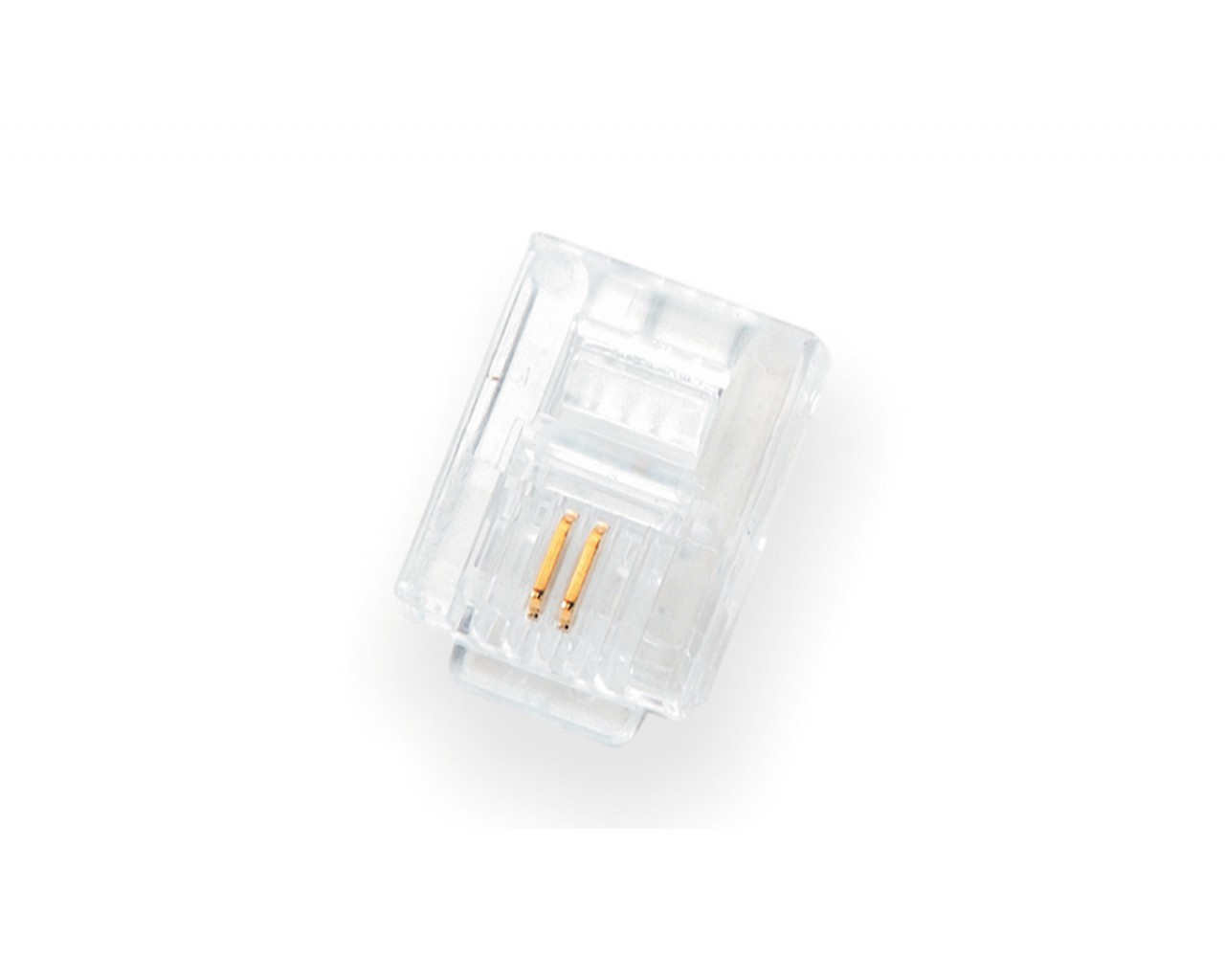

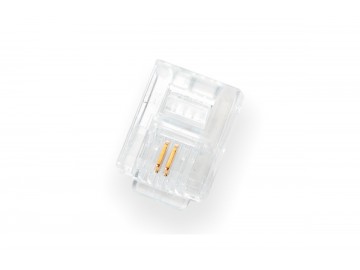

Modular Plug 6P2C for stranded wire

Modular Plug 6P2C for stranded wire

Features:

• 6 Position 2 Contact
• Used for Telephone Line Cord
• For stranded wire
• Flat cord entry
• Accepts 24 to 28 AWG stranded wires
• Used with NWCT-6P, NWCT-AIORT or NWCT-UNI-RCT tools
• UL, CUL & CSA approved

Specifications:

Electrical:

• 250 VAC maximum at 2 Amps
• Dielectric with-standing 500 VAC
• Insulation Resistance: 500 Megaohms
• Termination Resistance: 35 Megaohms

Gold Plating:

• Per MIL-G-45204C, Type II (99% pure gold minimum)
• Grade C+ (Knoop hardness range 130-250)
• Class 1 (50 microns minimum thickness)

Mechnical:

• Cable to plug tensile strength: 20 lbs (89N) minimum
• Durability: 2000 mating cycles

Material and Finish:

• Housing material: Polycarbonate (PC) (UL listed)
• 94V-0 (UL 1863 DUXR2)
• 94V-2 (UL 498 ECBT2)
• Contact blade: Phosphor Bronze, high strength copper alloy, 100 microns nickel under plated and gold selected

Operating Temperature:

• -40C to +125C
